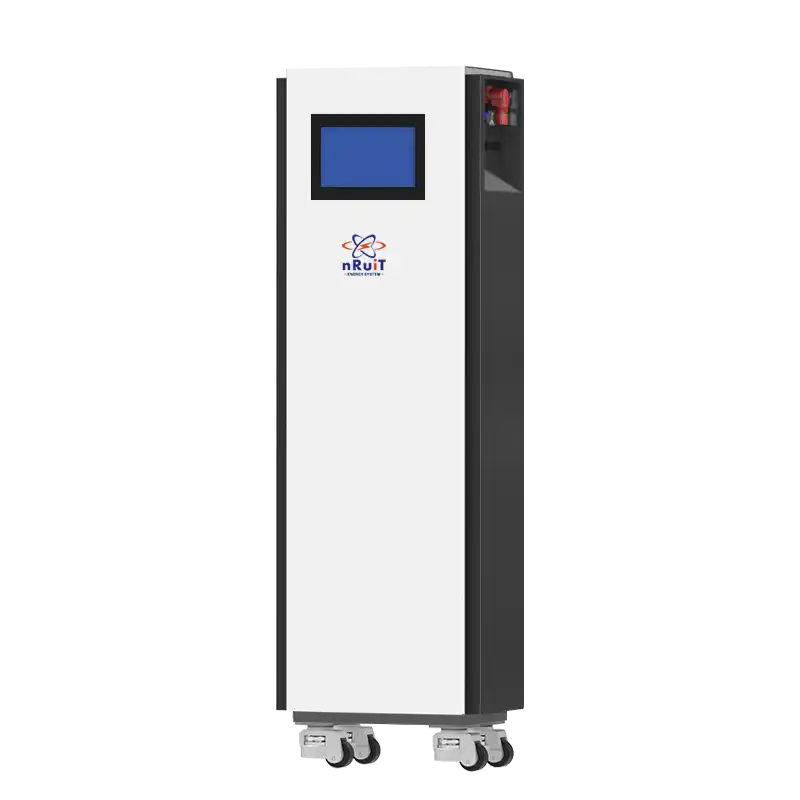

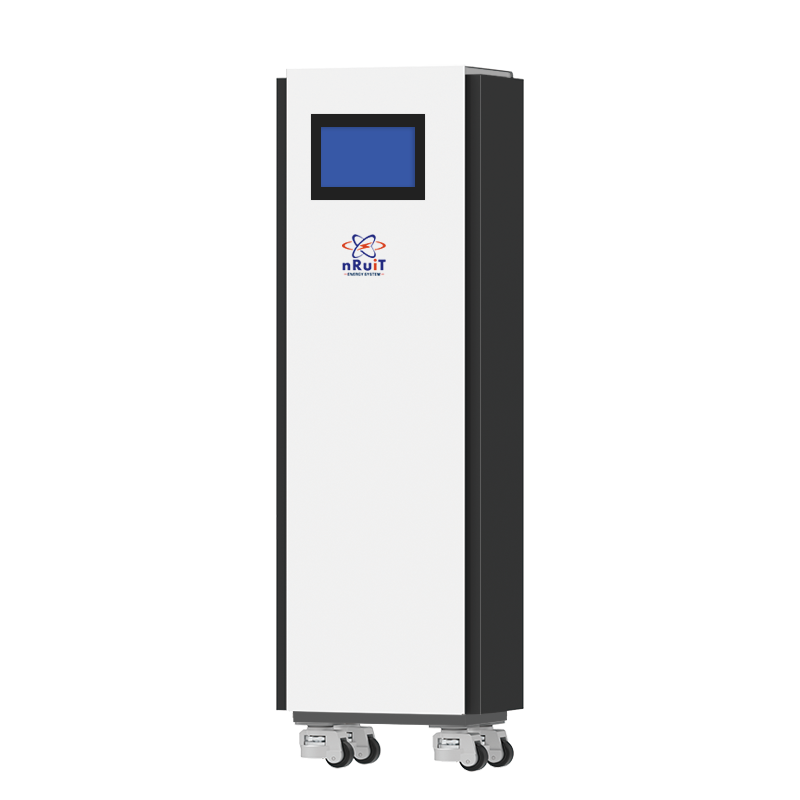

High Voltage Stacked ESS

UN38.3, CE, IEC62619 and other security performance certification.

Play Video

Datasheet

User Manual

Join Xinrex's Elite Partner Network.

FEATURES

IP65. Support Outdoor Usage

From 10.0kWh To 30.0kWh

Automatically Match The Voltage

Wireless Connection / Easy To Install / Save Space

LFP Cells. Cobalt Free

Match With Mainstream Inverter Brands

SPECIFICATION

Item	HV T10	HV T15	HV T20	HV T25	HV T30
Module Number	2	3	4	5	6
Nominal Voltage	204.8V	307.2V	409.6V	512.0V	614.4V
Nominal Battery Energy	10.6kWh	15.9kWh	21.2kWh	26.6kWh	31.9kWh
Max. Discharge Power	5kW	8kW	12kW	16kW	20kW
Max. Charge Power	5kW	8kW	12kW	16kW	20kW
Dimension[WDH]	700370609	700370777	700370945	7003701113	7003701281
NetWeight	125kg	174.5kg	224kg	273.5kg	323kg
Temp.Range	0℃ ~ 50℃（Charge） -20℃ ~ 50℃ （Discharge）
Warranty Letter	Yes
Ingress Protection	IP65
Color	White
Alarms	Over Charge / Over Discharge / Over Current / Over Temperature / Short Circuit
Pros	Can be used in both off-grid and hybrid set ups, compact design

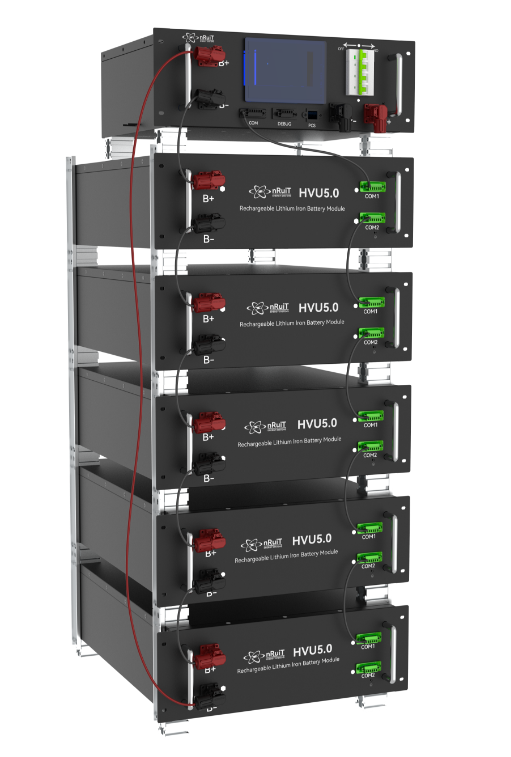

Battery Module Type	High Voltage
Module Connection Method	Series
Compatible Inverters	Deye/Megarevo / Growatt/Keyo/Aiswei, etc.
