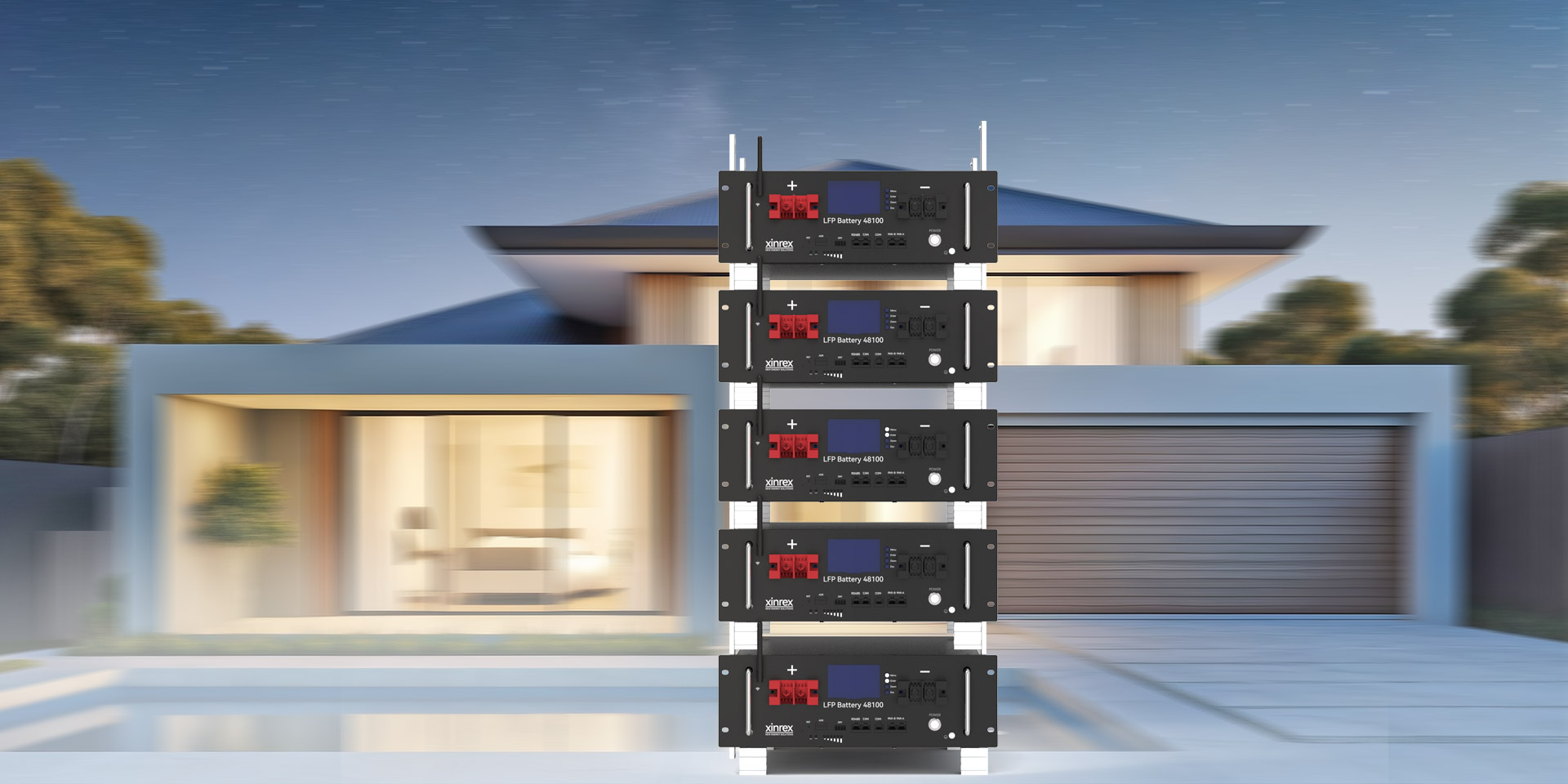

LV U Series

Cell Capacity: 100Ah
Nominal Battery Energy：5.12~30.6kWh
Warranty : 10 years
Cycle Life : 6000/times
DOD : 90%
Nominal Voltage : 51.2V

Play Video

Datasheet

User Manual

Join Xinrex's Elite Partner Network.

FEATURES

From 5.12kWh To 30.6kWh

Match The Voltage Automatically

IP21. Support Outdoor Usage

Wireless Connection / Easy To Install / Save Space

LFP Cells. Cobalt Free

Match With Mainstream Inverter Brands

SPECIFICATION

Item	LV U05	LV U10	LV U15	LV U20	LV U25	LV U30
Module Number	1	2	3	4	5	6
Nominal Capacity	100Ah	200Ah	300Ah	400Ah	500Ah	600Ah
Nominal Battery Energy	5.12kWh	10.2kWh	15.3kWh	20.4kWh	25.5kWh	30.6kWh
Max. Discharge Power	5kW	10kW	10kW	10kW	10kW	10kW
Max. Charge Power	5kW	10kW	10kW	10kW	10kW	10kW
Dimension[WDH]	Defined by the cabinet dimensions
NetWeight	45kg	90kg	135kg	182kg	225kg	270kg
Temp.Range	0℃ ~ 50℃（Charge） -20℃ ~ 55℃ （Discharge）
Warranty Letter	Yes
Ingress Protection	IP21
Color	BLACK
Alarms	Over Charge / Over Discharge / Over Current / Over Temperature / Short Circuit

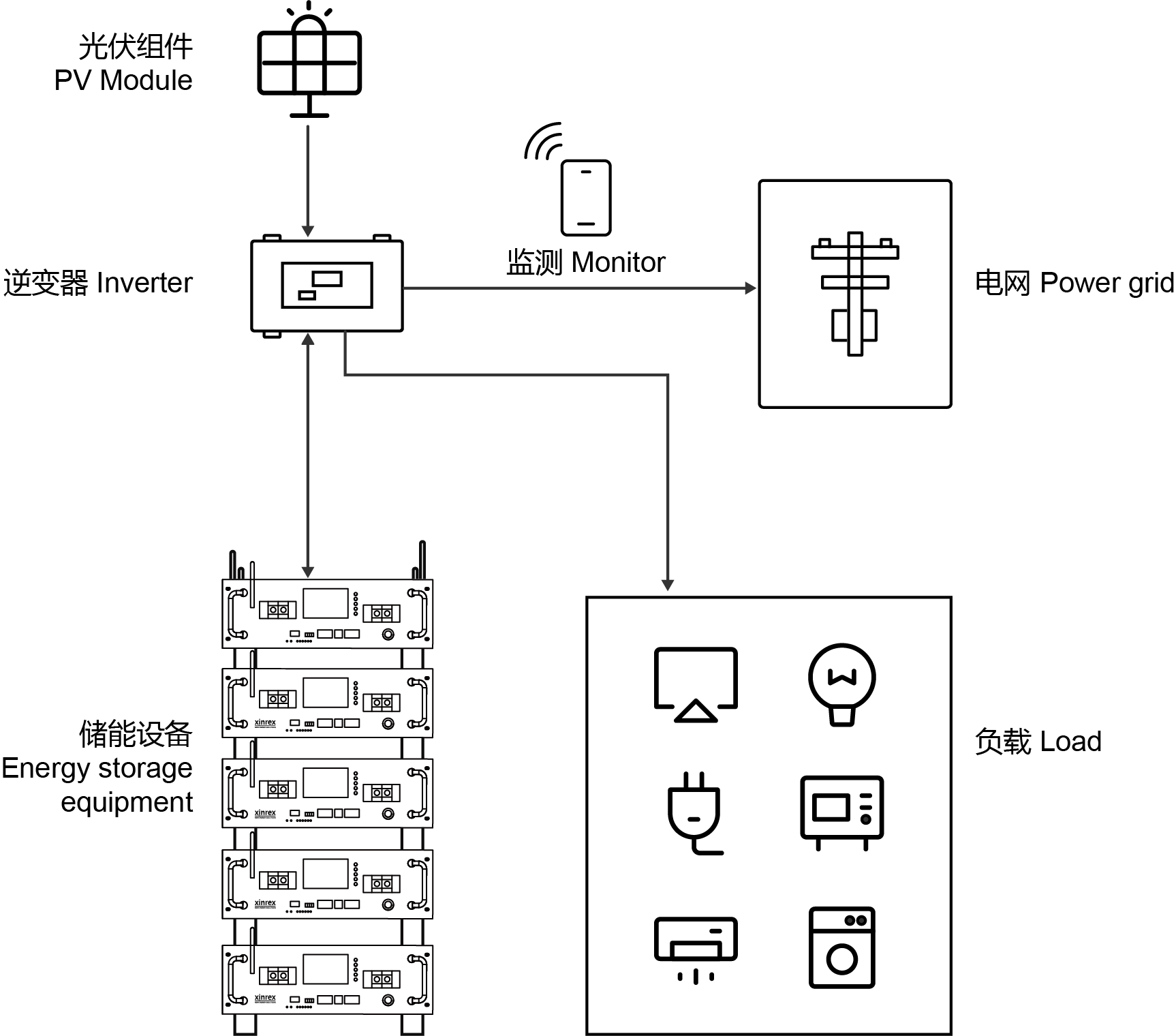

Pros	Can be used in both off-grid and hybrid set ups, compact design
Battery Module Type	Low Voltage
Module Connection Method	Parallel
Compatible Inverters	GoodWe/Deye/Megarevo/Growatt/Lux Power/TBB/Victron/Srne/Must/Senergy/Voltronic/Aptai/Sofar/Sma,etc
