HV U Series

UN38.3, CE, IEC62619 and other security performance certification.

Play Video

Datasheet

User Manual

Join Xinrex's Elite Partner Network.

FEATURES

IP21. Support Outdoor Usage

From 10.0kWh To 30.0kWh

utomatically Match The Voltage

Wireless Connection / Easy To Install / Save Space

LFP Cells. Cobalt Free

Match With Mainstream Inverter Brands

SPECIFICATION

Item	HV U10	HV U15	HV U20	HV U25	HVU30
Module Number	2	3	4	5	6
Nominal Voltage	204.8V	307.2V	409.6V	512.0V	614.4V
Nominal Battery Energy	10.6kWh	15.9kWh	21.2kWh	26.6kWh	31.9kWh
Max. Discharge Power	5kW	8kW	12kW	16kW	20kW
Max. Charge Power	5kW	8kW	12kW	16kW	20kW
Dimension[WDH]	Defined by the cabinet dimensions
NetWeight	103kg	149kg	195kg	241kg	287kg
Temp.Range	0℃ ~ 50℃（Charge） -20℃ ~ 50℃ （Discharge）
Warranty Letter	Yes
Ingress Protection	IP21
Color	Black
Alarms	Over Charge / Over Discharge / Over Current / Over Temperature / Short Circuit

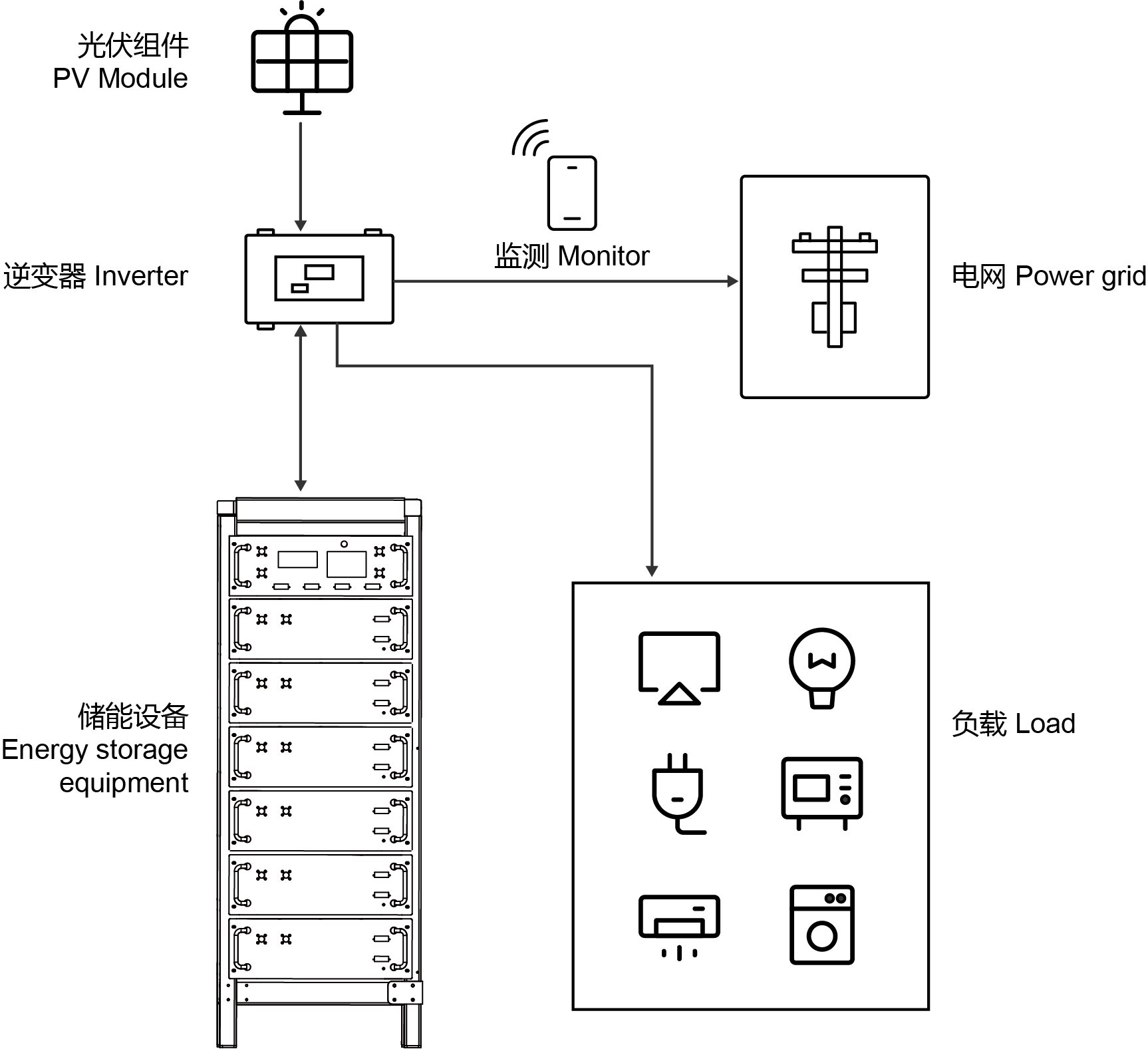

Pros	Can be used in both off-grid and hybrid set ups, compact design
Battery Module Type	High Voltage
Module Connection Method	Series
Compatible Inverters	Deye/Megarevo / Growatt/Keyo/Aiswei, etc.
