Power Porter 15.0-Residential Energy Storage-Dong Guan Xinrex Energy Technology Co.,Ltd.-Clean, Safe, Intelligent ESS & New Energy Solutions Provider

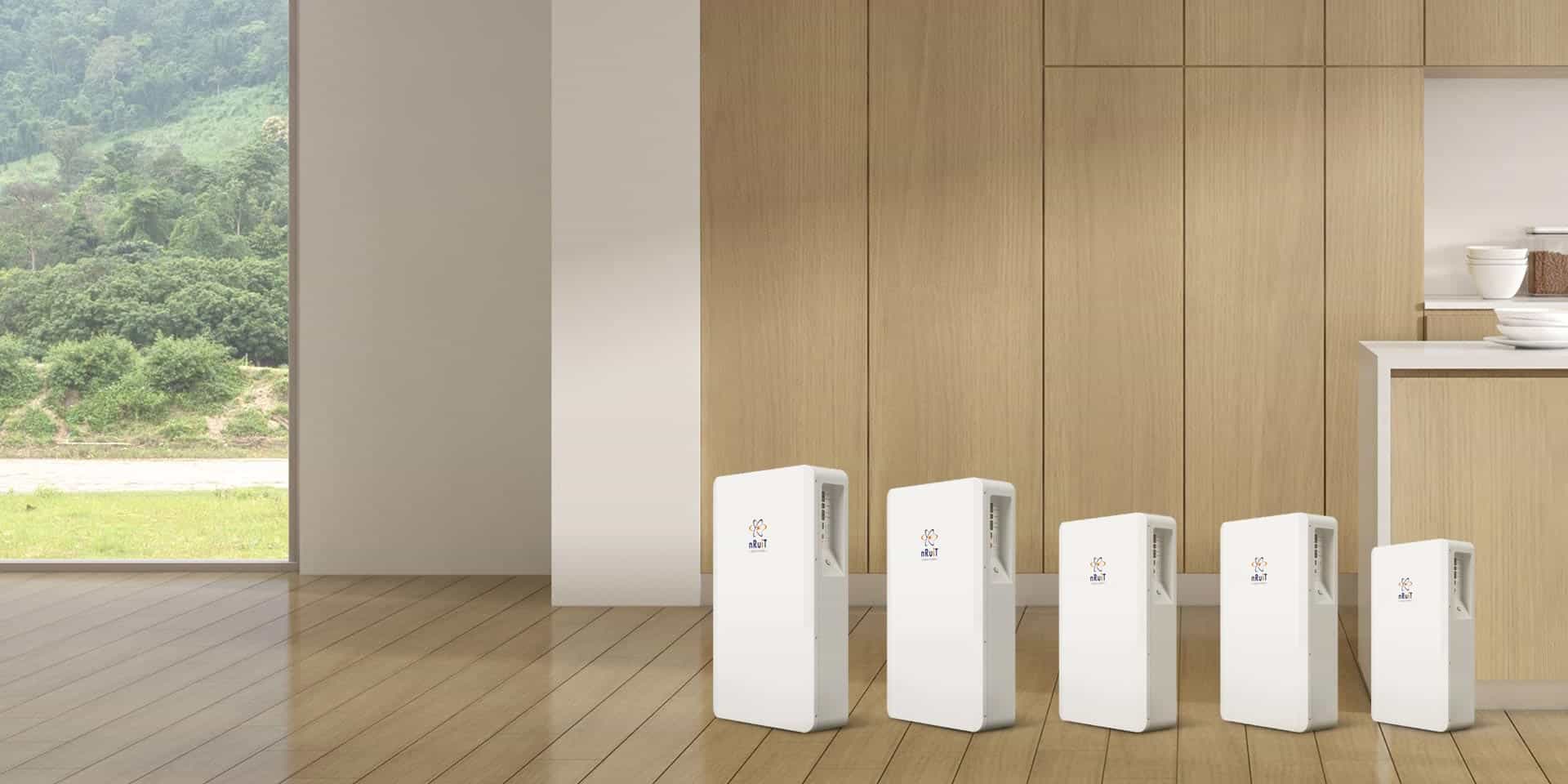

Power Porter 15.0

10kW | 15.46kWh

Powerporter is a lithium-ion battery that can store electrical energy and outputs DC current. Powerporter only maintains electrical connection with the inverter. The electrical energy generated by the PV is converted by the inverter Dc to DC and stored in the connected Powerporter. When Powerporter is needed, Powerporter’s electrical energy is converted by the inverter DC to AC and transmitted to the home grid to provide power for household appliances.

(Note: The actual Residential ESS may also include electrical equipment such as distribution boxes and metering meters)

Play Video

Datasheet

User Manual

Join Xinrex's Elite Partner Network.

FEATURES

LFP Cells. Cobalt Free

Floor Mounted

The Battery Is More Integrated And Lighter

Metal Case And Tiny Size

Fast Charge And Discharge. No Memory Effect

Match With Mainstream Inverter Brands

SPECIFICATION

Battery Data
Rated Voltage	51.2V
Rated Energy	15.46kWh
Cell Capacity	302Ah
Discharging Voltage	45~54V
Charging Voltage	51.5V~54V
Operating Temperature	0℃ ~ 45℃ (Charge) -20℃ ~ 45℃ (Discharge)
Cont. Charging Current	200A
Peak Charging Current	230A
Cont. Discharging Current	200A
Peak .Discharging Current	230A
Rated. Discharging Power	10000W
Max.Discharging DC Power	5000W More than 2 units

General Data
IP Grade	IP31
Scalability	Up To 4 Units
DOD	90%
Installation	Floor mount
Dimension	980×460×230mm
Weight	120kg
Authentication	UN CE
Compatible Inverter	GoodWe/Deye/Megarevo/Growatt/Lux Power/TBB/Victron/Srne/Must/Senergy/Voltronic/Aptai/Sofar/Sma,etc
