English Version
Power Lite 30.0
30kWh High-Capacity Residential Battery Energy Storage System

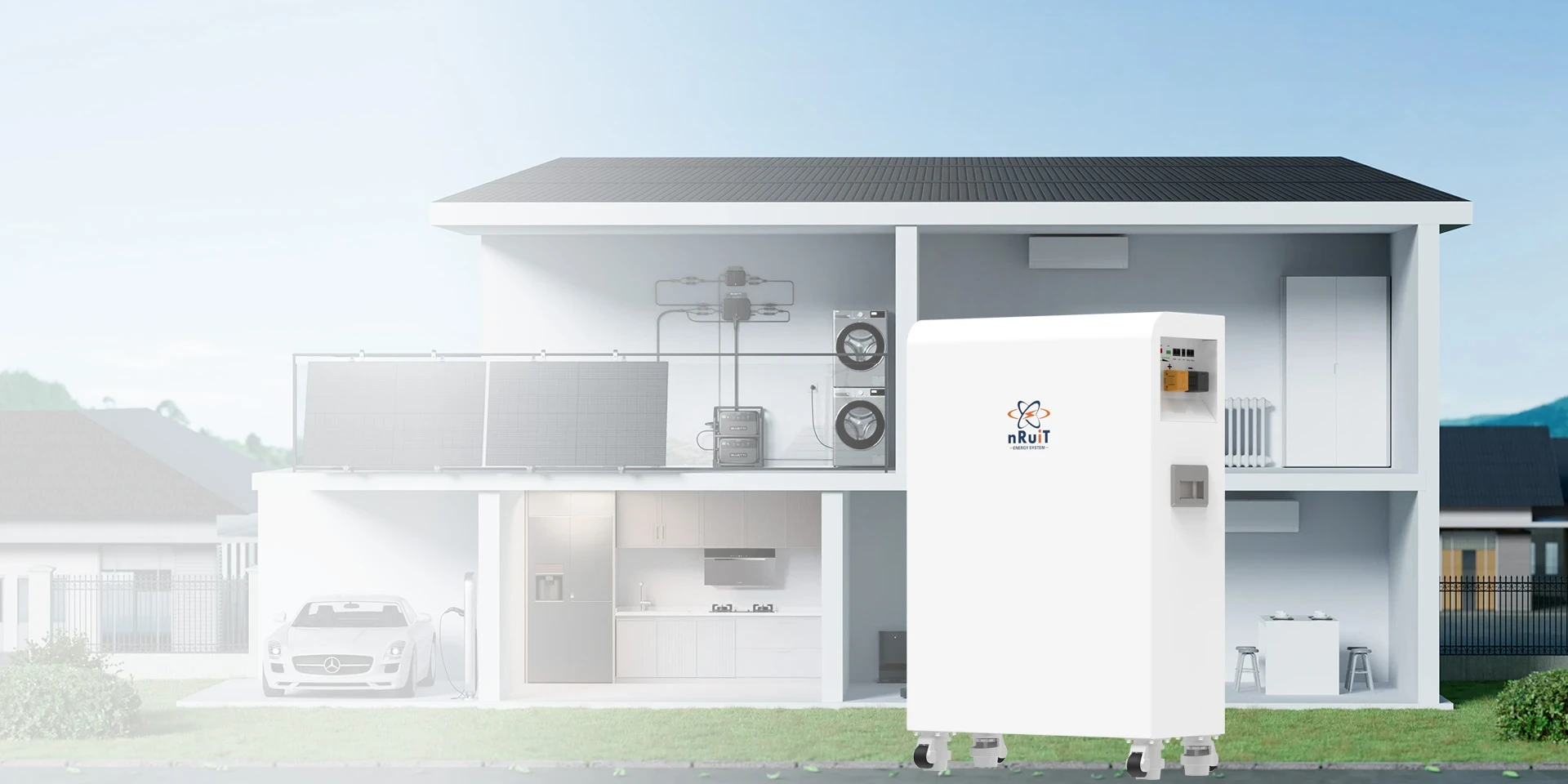

Power Lite 30.0 is a high-capacity residential battery energy storage system designed to improve solar energy utilization and provide reliable power solutions for modern homes.
With a 30.05kWh rated energy capacity, advanced LiFePO4 battery cells, and an intelligent Battery Management System (BMS), Power Lite 30.0 delivers safe, efficient and long-lasting energy storage performance.
Integrated with solar PV systems, hybrid inverters and smart energy management platforms, it enables homeowners to achieve energy independence, reduce electricity costs and maintain reliable backup power during grid outages.
Its compact floor-standing design, flexible installation and multiple communication options make it an ideal solution for global residential solar storage applications.
| Battery data | |
| Rated voltage | 51.2V |
| Rated energy | 30.05kWh |
| Nominal capacity | 587Ah |
| Discharge Voltage | 44.8V |
| Charge voltage | 58.4V |
| Operating temperature | 0℃~55℃（Charge） -30℃~55℃（Discharge） |
| Continuous charge current | 150A |
| Peak charge current | 150A |
| Continuous discharge current | 150A |
| Peak discharge current | 300A |
| Max. Continuous DC Power | 15000W |
| General data | |
| IP protection level | IP21 |
| Extensibility | Supports parallel connection of up to 15 units. |
| DOD | 90% |
| Lnstallation method | floor standing |
| Cycle life | >6000 |
| Communication protocol | RS485 / CAN2.0 |
| Demension | 665*310*990mm |
| Warranty | 5 Years |
UN38.3、CE、IEC62619
* When the temperature is below 0 ℃ or above 45℃, the performance will be limited.
