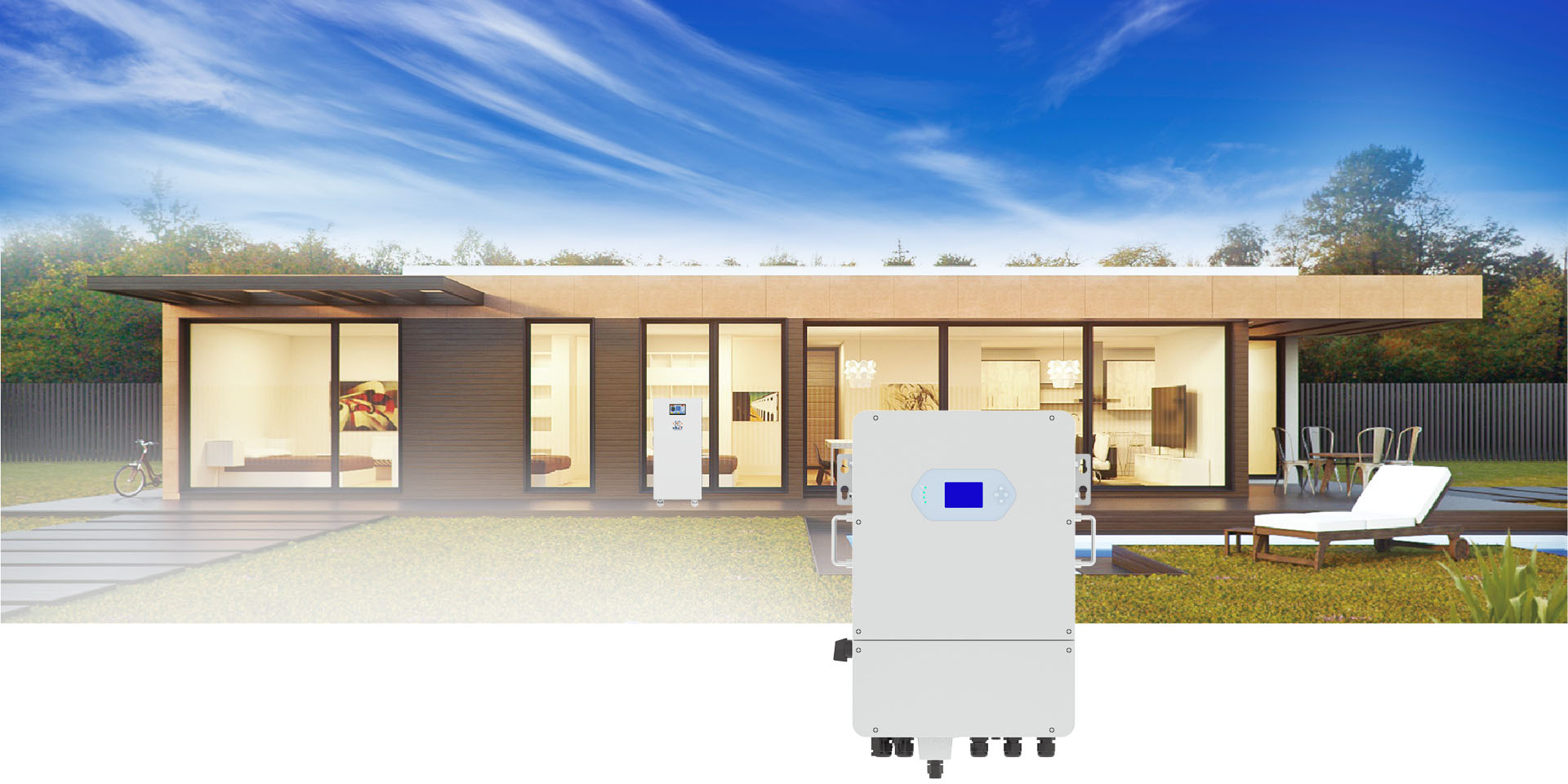

Single phase hybrid inverter

G6K-8K-10K-12K-P1LA

Play Video

Datasheet

User Manual

Join Xinrex's Elite Partner Network.

FEATURES

Maximum charge/discharge current:250A.

Supports AC coupling to retrofit existing solar systems.

Directly supports diesel generator power without an external converter.

Up to 16 units can be connected in parallel during grid-connected and off-grid operation

supports parallel connection of multiple batteries.

Color touch screen with IP65 protection level.

SPECIFICATION

Single phase hybrid inverter CE

Model	G6K-P1LA	G8K-P1LA	G10K-P1LA	G10K-P1LA
DC data
Max. Input power	7.8KW	10.4KW	13KW	15.6KW
Max. Input voltage	500V
Start-up voltage	160V
Rated voltage	370 (125~500)
Battery data
Battery type	Lithium/Lead-Acid
Operating voltage range	40V~60V
Max charge/discharge current	135A / 190A	190A / 190A	220A / 220A	250A / 250A
Continuous charge/discharge power	6KW	8KW	10KW	12KW
Exchange data
Rated power	6.6KW	8.8KW	11.1KW	13.2KW
Rated voltage	230V
Rated frequency	50Hz / 60Hz
Max. AC output current	50Hz / 60Hz
Max. AC output current	40A	50A	60A	60A
Power factor	0.8 Leading~0.8 Lagging
Common data
Dimensions	330580239.5 mm		413630257.5 mm
Weight	24kg	29kg	31kg
IP protection level	IP65
Range of working temperature	-40℃~+60℃,Derating>45℃
Relative humidity	10-90% No condensation
Maximum working altitude	Up to 2000m above sea level
Cooling method	Intelligent air cooling
